LORENZ trapeo – PV mounting for trapezoidal sheet

THE FAST TRAPEZOIDAL SHEET SOLUTION

LORENZ trapeo

Exceptionally quick-to-install mounting system for trapezoidal sheet roofs with roof slopes from 5° to 60°.

Attachment is done with thin sheet metal self-drilling screws.

Cable routing is possible within the profile or with the optional cable clip.





REQUEST PRODUCT
FIND A RESELLER

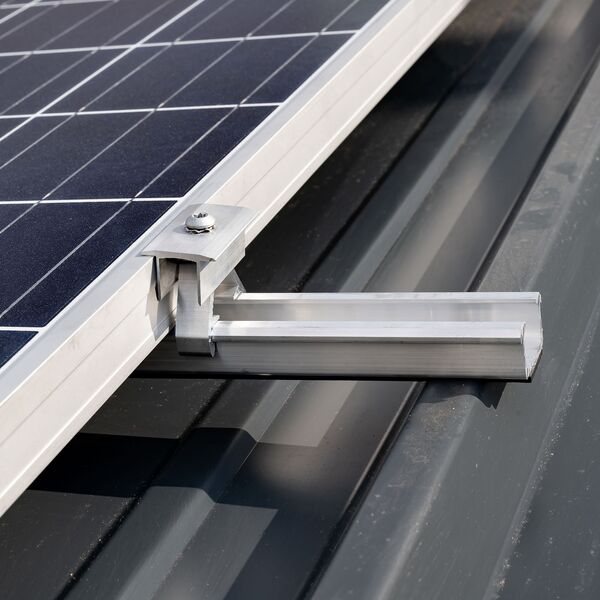

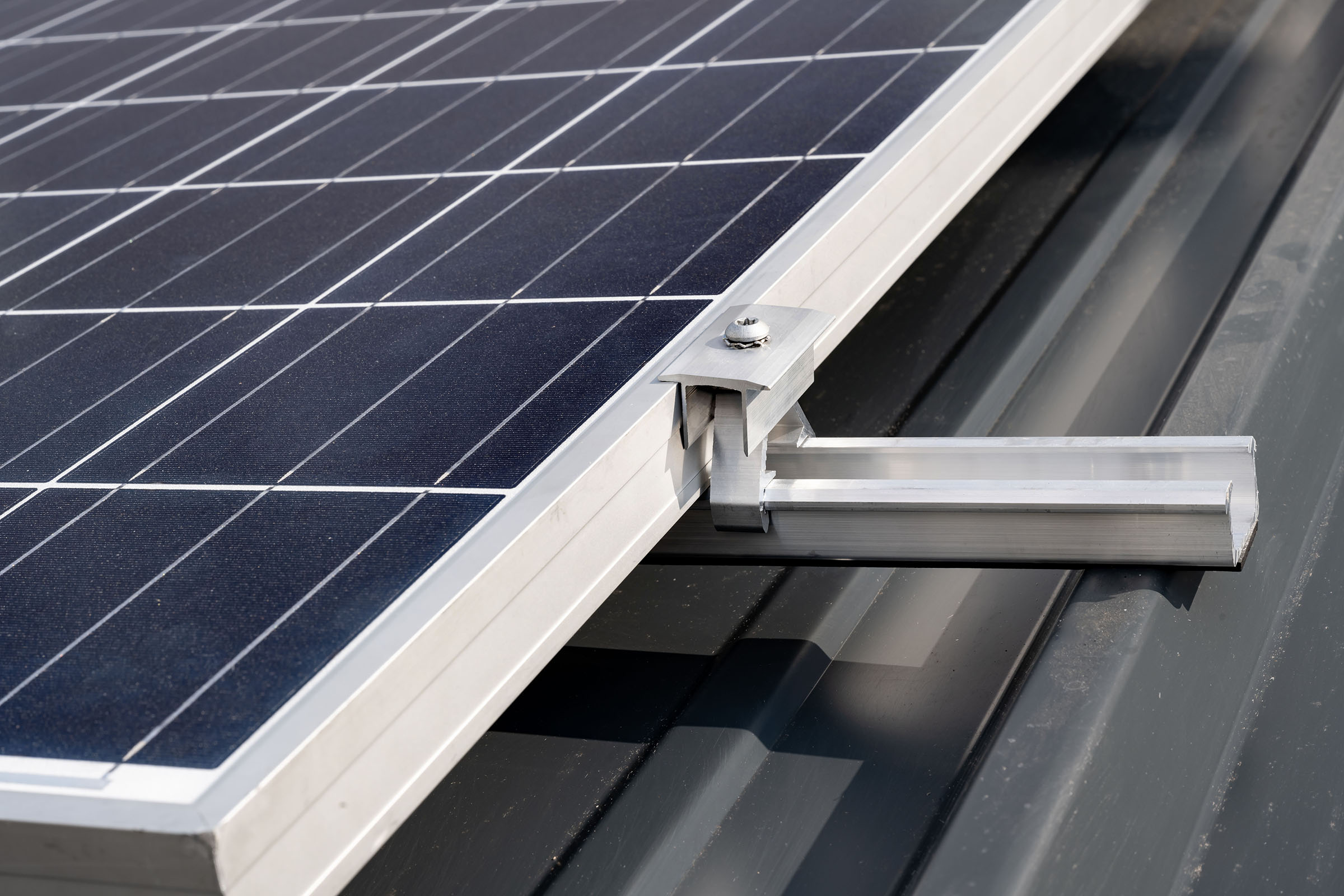

LORENZ trapeo with PV modules on a trapezoidal sheet roof

Components

trapeo 400 profile

Trapeo 400

  • Item number: 139511000
  • Trapeo rail with a length of 400 mm
  • 8 pre-drilled holes for quick installation
  • Pre-applied, sealing EPDM
  • For vertical module mounting
  • Compatible for all common trapezoidal sheets
trapeo mini 120 profile

Trapeo 120

  • Item number: 139512110
  • Trapeo-rail with 120 mm length
  • 2 pre-drilled holes for quick installation
  • Pre-applied, sealing EPDM
  • For horizontal module mounting
  • Suitable for all common trapezoidal sheets
Middle clamp 30–42 mm, silver

Middle Clamp FH 30-42s

  • Item number: 139212000
  • Aluminium, untreated
  • Designed for frame heights 30-42 mm
  • Pre-assembled, including Allen head screw
Middle clamp 30–42 mm, dark

Middle Clamp FH 30-42b

  • Item number: 139212100
  • Aluminum, black anodised
  • Designed for frame heights 30–42 mm
  • Pre-assembled, including Allen head screw
End clamp 30–42 mm, dark

End Clamp FH 28-40b

  • Item number: 139230310
  • Aluminium, black anodised
  • Designed for frame heights 28–40 mm
  • Pre-assembled, including Allen head screw
End clamp 30–42 mm, dark

End Clamp FH 28-40b

  • Item number: 139230310
  • Aluminium, black anodised
  • Designed for frame heights 28–40 mm
  • Pre-assembled, including Allen head screw
Soloclip

Soloclip

  • Item number: 139486700
  • Cable clip for the solo-basic, solo, and trapeo systems
  • Permanent secure cable attachment
  • Quantity per pack: 10 items

Assembly Video trapeo 400

Assembly Video trapeo 120
